Chillers

冷水机产品

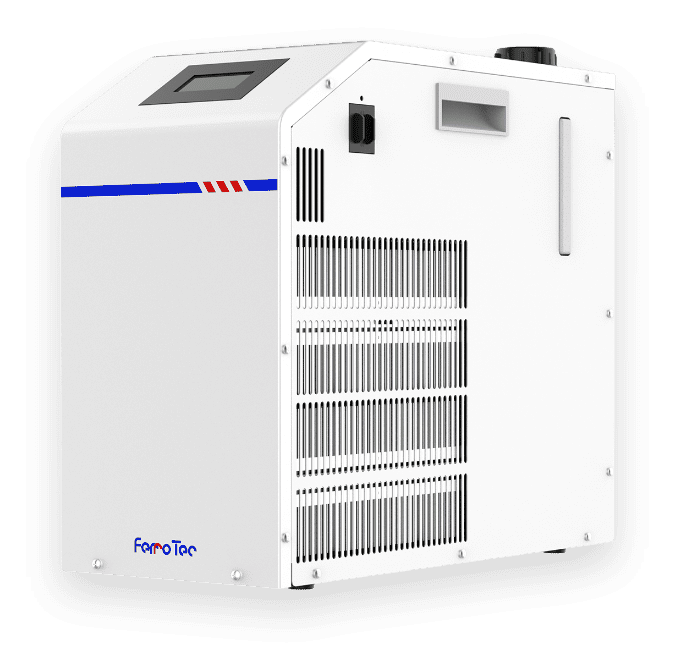

FerroCool®

FCP60022AJP

式样

Model FCP60022AJP
Cooling method Thermoelectric device (Thrmo-module)
Radiating method Forced air cooling
Control method Cooling/Heatng automatic shift PID control
Circulating Fluid System Ambient temperature/humidity 10～35℃, 35～80%RH
Circulating fluid DI Water
Operating temperature range 10.0～60.0℃
Cooling capacity 600W (25℃)　※1
Heating capacity 900W (25℃)　※1
Temperature stability ±0.05℃　※2
Pump Magnetic drive pump 19L/min, 20m lift
Tank capacity Approx. 3.0L
Port size IN/OUT Rc3/8
Drain Rc3/8 (with plug)
Wetted parts material Stainless steel 304, EPDM, PE, ABS
Electrical System Power supply Single-phase 100 to 240VAC±10%, 50/60Hz
Overcurrent protector 13.5A
Current consumption 9.5A (100V)～3.9A (240V)
Communications I/O, ETH, RS232, RS485
Weight Approx27.2kg
Accessories Power cable
Safety standards EN60204-1 CE marking

※ 1 Ambient temperature 25℃，Set temperature 25℃，Circulating 5.5L/min

※ 2 Value under stable load without turbulence
