FerroCool®

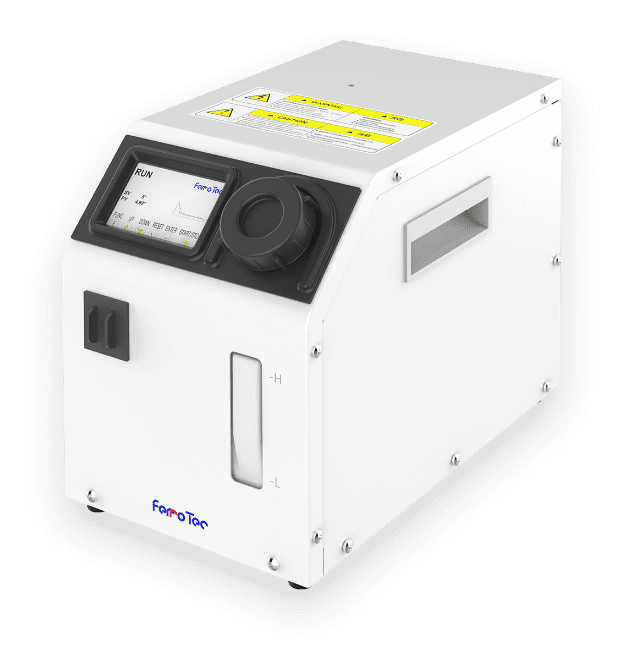

FCP30023WJP

式样

Model FCP30023WJP
Cooling method Thermoelectric device (Thrmo-module)
Radiating method Forced fluid cooling
Control method Cooling/Heatng automatic shift PID control
Circulating Fluid System Ambient temperature/humidity 10～35℃, 35～80%RH
Circulating fluid DI Water
Operating temperature range 10.0～60.0℃
Cooling capacity 320W (25℃)　※1
Heating capacity 680W (25℃)　※1
Temperature stability ±0.05℃　※2
Pump Magnetic drive pump 22L/min, 11m lift
Tank capacity Approx. 1.2L
Port size IN/OUT Rc3/8
Drain Rc3/8 (with plug)
Wetted parts material Stainless steel 304, EPDM, PE, ABS
Facility water system Temperature range 10-35℃
Pressure range ≦1MPa
Required flow rate 3-10L/min
Port size S-IN/S-OUT Rc3/8
Watted parts material Aluminum, Stainless steel 304, EPDM, PE
Electrical System Power supply Single-phase 100 to 240VAC±10%, 50/60Hz
Overcurrent protector 13.5A
Current consumption 4.8A (100V)～2.2A (240V)
Communications I/O, ETH, RS232, RS485
Weight Approx10.5kg
Accessories Power cable
Safety standards EN60204-1 CE marking

※ 1 Ambient temperature 25℃，Facility water temperature 25℃，Set temperature 25℃，Circulating 7.0L/min

※ 2 Value under stable load without turbulence
