Ferrofluidic Seals
(FerroSeals)

Magnetic Fluid Seal

Ferrofluidic Seals (FerroSeals)

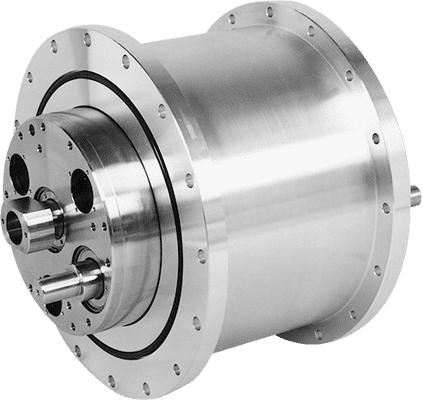

Multi-Axial FerroSeals

Three Axis Type

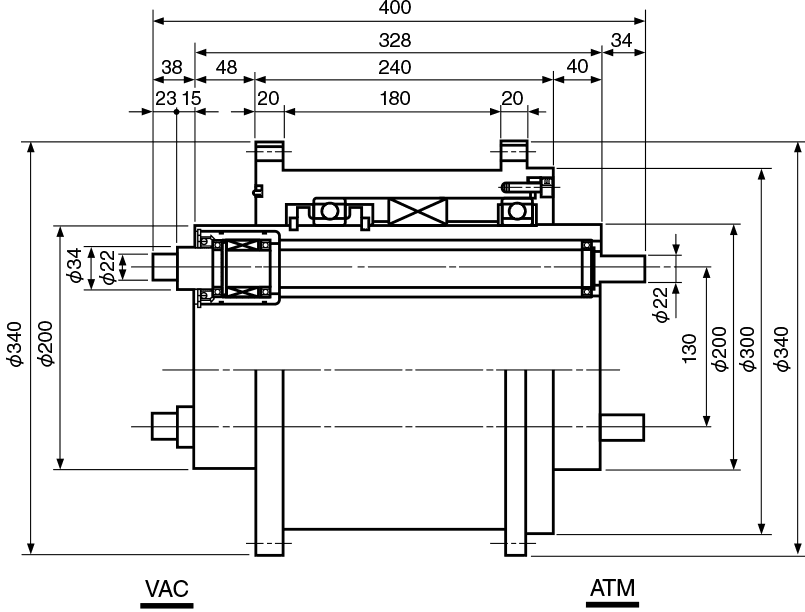

Model CFL200NN type
Reference Ultimate Pressure [Pa] 10-6
Operating Temperature Range [℃] Room temperature to 80
Gas Compatibility Inert gas
Housing Material A2024
Shaft Material SUS630
[Features]
This model has a high stiffness and achieves high run-out accuracy and rotation accuracy.
Aluminum housing types are also available for weight saving.
[Applications]
LCD large glass substrate transfer vacuum robots (frog-arm type)
Values in the data tables are the result of our test ,
or calculation and not guaranteed
